Docker

Docker containers share the kernel with the underlying OS. What does this mean?

If we run Docker on a machine using a Linux distro like Ubuntu for example, we can run docker containers based on any other flavour of Linux, not just Ubuntu, as long as they share the same Linux kernel.

We cannot run a Windows-based docker container on a Linux machine, because Windows and Linux do not share the same kernel. We would need a Windows machine to run Windows-based containers.

Containers vs. Virtual Machines

Untitled

Comparing to VMs, containers have…

Lower resource utilisation as they do not need to run an entire operating system
Smaller storage footprint, again due to not needing to duplicate operating system installations
Faster boot up times

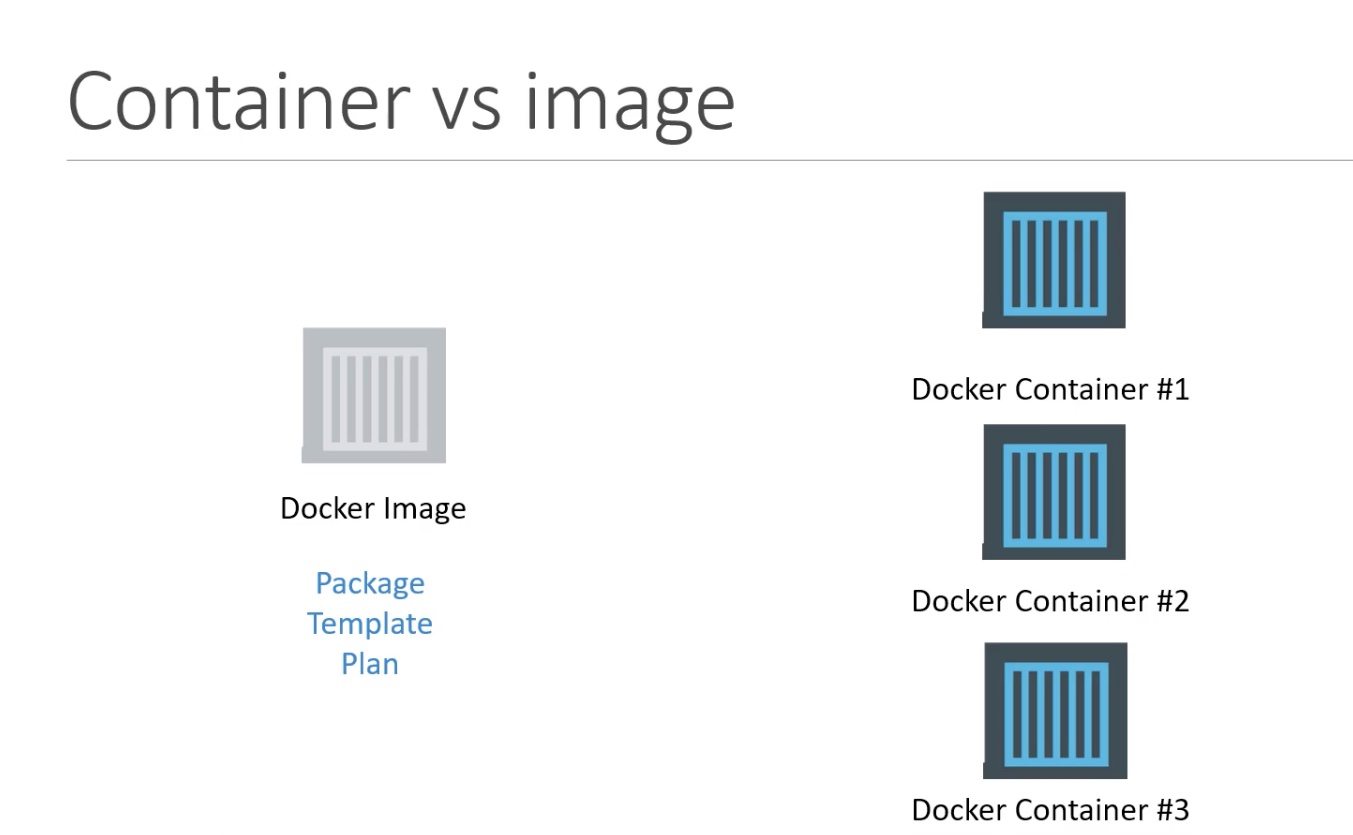

Container vs. Image

Untitled

An image can be thought of as a template or package. It’s a set of instructions we can give to Docker to tell it how to construct a new container. We can push docker images to repositories, public or private, for later use.

A container then, is an instance of those instructions that we can now boot up and use. We can create many containers from the same set of instructions, and these containers will be logically isolated from one another.

Reasons to push to a private container repository:

We can do security scanning on images that we can’t do when sourcing from DockerHub
DockerHub has aggressive API rate limits (100 pulls/IP address per day maybe?), which can easily be exhausted if we bake DockerHub images into a pipeline consumed by many teams

For these reasons it is worth creating our own images in a private registry, even if we make no changes at all to the image.

View all containers (running and not running): docker ps -a

Get a bash shell inside a container: docker exec -it <container name> /bin/bash

Execute any command inside a container: docker exec -it <container name> <command>

Delete all docker containers: docker rm -f $(docker ps -a -q)

Delete all docker images: docker rmi -f $(docker images -aq)

DNS resolution issues

Restart docker/colima service

Dockerfile linting

hadolint/hadolint available as a docker image, see Linting

Which dockerfile designation?

Alpine, Slim, Stretch, Buster, Jessie, Bullseye, Bookworm - What are the Differences in Docker…

Authenticating against private nuget/npm feeds

https://github.com/Microsoft/artifacts-credprovider

dotnet-docker/nuget-credentials.md at main · dotnet/dotnet-docker

We can omit credentials in the nuget config file in the repository and in our Dockerfile specify:

RUN curl -L https://raw.githubusercontent.com/Microsoft/artifacts-credprovider/master/helpers/installcredprovider.sh  | sh
ENV VSS_NUGET_EXTERNAL_FEED_ENDPOINTS="{\"endpointCredentials\": [{\"endpoint\":\"https://myspecialnugetfeed.com/_packaging/my-awesome-feed/nuget/v3/index.json\", \"username\":\"myemail.address\", \"password\":\"${FEED_ACCESSTOKEN}\"}]}"

passing in FEED_ACCESSTOKEN as a build argument. VSS_NUGET_EXTERNAL_FEED_ENDPOINTS is a well-known env variable for the cred provider.

Colima

switching batect from docker desktop to colima

Colima on M1 Mac

SOLVED Initially I ran colima start which apparently creates a aarch64 VM and then every following colima start … no matter what arguments uses that VM. I had to colima delete first, then run colima start --arch x86_64 to create a x86_64 VM. Now things seem to be working.

SQL Server in docker

If trying to run SQL Server in docker on a machine that also has SQL Server running locally, you may see some funny connectivity issues. You just need to stop the SQL Server + agent processes running locally.

Cant run webpack-dev-server inside of a docker container? · Issue #547 · webpack/webpack-dev-server

Debugging Docker builds

why docker build send build context to docker daemon so slow

Build images with BuildKit

Docker best practices

Docker Intensif

Creating images

When to (not) use tags

Don’t specify tags:

When doing rapid testing and prototyping.
When experimenting.
When you want the latest version.

Do specify tags:

When recording a procedure into a script.
When going to production.
To ensure that the same version will be used everywhere.
To ensure repeatability later.

This is similar to what we would do with pip install, npm install, etc.

Shell syntax vs exec syntax

Dockerfile commands that execute something can have two forms:

plain string, or shell syntax: RUN apt-get install figlet
JSON list, or exec syntax: RUN ["apt-get", "install", "figlet"]

We are going to change our Dockerfile to see how it affects the resulting image.

History with exec syntax

Compare the new history:

$ docker history figlet
IMAGE         CREATED            CREATED BY                     SIZE
27954bb5faaf  10 seconds ago     apt-get install figlet         1.627 MB
7257c37726a1  About an hour ago  /bin/sh -c apt-get update      21.58 MB
07c86167cdc4  4 days ago         /bin/sh -c #(nop) CMD ["/bin   0 B
<missing>     4 days ago         /bin/sh -c sed -i 's/^#\s*\(   1.895 kB
<missing>     4 days ago         /bin/sh -c echo '#!/bin/sh'    194.5 kB
<missing>     4 days ago         /bin/sh -c #(nop) ADD file:b   187.8 MB

Exec syntax specifies an exact command to execute.
Shell syntax specifies a command to be wrapped within /bin/sh -c "...".

When to use exec syntax and shell syntax

shell syntax:
- is easier to write
- interpolates environment variables and other shell expressions
- creates an extra process (/bin/sh -c ...) to parse the string
- requires /bin/sh to exist in the container
exec syntax:
- is harder to write (and read!)
- passes all arguments without extra processing
- doesn’t create an extra process
- doesn’t require /bin/sh to exist in the container
Pro-tip: the exec shell built-in

POSIX shells have a built-in command named exec.

exec should be followed by a program and its arguments.

From a user perspective:
- it looks like the shell exits right away after the command execution,
- in fact, the shell exits just before command execution;
- or rather, the shell gets replaced by the command.
Example using exec
```
CMD exec figlet -f script hello
```
In this example, sh -c will still be used, but figlet will be PID 1 in the container.

The shell gets replaced by figlet when figlet starts execution.

This allows to run processes as PID 1 without using JSON.

Adding CMD to our Dockerfile

Our new Dockerfile will look like this:
```
FROM ubuntu
RUN apt-get update
RUN ["apt-get", "install", "figlet"]
CMD figlet -f script hello
```
- CMD defines a default command to run when none is given.
- It can appear at any point in the file.
- Each CMD will replace and override the previous one.
- As a result, while you can have multiple CMD lines, it is useless.
Overriding CMD

If we want to get a shell into our container (instead of running figlet), we just have to specify a different program to run:
```
$ docker run -it figlet bash
root@7ac86a641116:/#
```
- We specified bash.
- It replaced the value of CMD.
Using ENTRYPOINT

We want to be able to specify a different message on the command line, while retaining figlet and some default parameters.

In other words, we would like to be able to do this:
```
$ docker run figlet salut
           _
          | |
 ,   __,  | |       _|_
/ \_/  |  |/  |   |  |
 \/ \_/|_/|__/ \_/|_/|_/
```
We will use the ENTRYPOINT verb in Dockerfile.

Adding ENTRYPOINT to our Dockerfile

Our new Dockerfile will look like this:
```
FROM ubuntu
RUN apt-get update
RUN ["apt-get", "install", "figlet"]
ENTRYPOINT ["figlet", "-f", "script"]
```
- ENTRYPOINT defines a base command (and its parameters) for the container.
- The command line arguments are appended to those parameters.
- Like CMD, ENTRYPOINT can appear anywhere, and replaces the previous value.
Why did we use JSON syntax for our ENTRYPOINT?

Implications of JSON vs string syntax
- When CMD or ENTRYPOINT use string syntax, they get wrapped in sh -c.
- To avoid this wrapping, we can use JSON syntax.
What if we used ENTRYPOINT with string syntax?
```
$ docker run figlet salut
```
This would run the following command in the figlet image:
```
sh -c "figlet -f script" salut
```
When to use ENTRYPOINT vs CMD

ENTRYPOINT is great for “containerized binaries”.

Example: docker run consul --help

(Pretend that the docker run part isn’t there!)

CMD is great for images with multiple binaries.

Example: docker run busybox ifconfig

(It makes sense to indicate which program we want to run!)

Local dev inside a container

Option 1:
- Edit the code locally
- Rebuild the image
- Re-run the container
Option 2:
- Enter the container (with docker exec)
- Install an editor
- Make changes from within the container
Option 3:
- Use a bind mount to share local files with the container
- Make changes locally
- Changes are reflected in the container
Exploring a crashed container
- We can restart a container with docker start …
- … But it will probably crash again immediately!
- We cannot specify a different program to run with docker start
- But we can create a new image from the crashed container
```
docker commit <container_id> debugimage
```
- Then we can run a new container from that image, with a custom entrypoint
```
docker run -ti --entrypoint sh debugimage
```
Obtaining a complete dump
- We can also dump the entire filesystem of a container.
- This is done with docker export.
- It generates a tar archive.
```
docker export <container_id> | tar tv
```
This will give a detailed listing of the content of the container.

Tips for building efficient Dockerfiles

Reducing the number of layers
- Each line in a Dockerfile creates a new layer.
- Build your Dockerfile to take advantage of Docker’s caching system.
- Combine commands by using && to continue commands and \ to wrap lines.
Note: it is frequent to build a Dockerfile line by line:
```
RUN apt-get install thisthing
RUN apt-get install andthatthing andthatotherone
RUN apt-get install somemorestuff
```
And then refactor it trivially before shipping:
```
RUN apt-get install thisthing andthatthing andthatotherone somemorestuff
```
Avoid re-installing dependencies at each build
- Classic Dockerfile problem:

  “each time I change a line of code, all my dependencies are re-installed!”
- Solution: COPY dependency lists (package.json, requirements.txt, etc.) by themselves to avoid reinstalling unchanged dependencies every time.
Example “bad” Dockerfile

The dependencies are reinstalled every time, because the build system does not know if requirements.txt has been updated.
```
FROM python
WORKDIR /src
COPY . .
RUN pip install -qr requirements.txt
EXPOSE 5000
CMD ["python", "app.py"]
```
Fixed Dockerfile

Adding the dependencies as a separate step means that Docker can cache more efficiently and only install them when requirements.txt changes.
```
FROM python
WORKDIR /src
COPY requirements.txt .
RUN pip install -qr requirements.txt
COPY . .
EXPOSE 5000
CMD ["python", "app.py"]
```
Embedding unit tests in the build process
```
FROM <baseimage>
RUN <install dependencies>
COPY <code>
RUN <build code>
RUN <install test dependencies>
COPY <test data sets and fixtures>
RUN <unit tests>
FROM <baseimage>
RUN <install dependencies>
COPY <code>
RUN <build code>
CMD, EXPOSE ...
```
- The build fails as soon as an instruction fails
- If RUN <unit tests> fails, the build doesn’t produce an image
- If it succeeds, it produces a clean image (without test libraries and data)
Volumes

Volumes can be used for two things:
1. Mounting an existing directory on the host machine into a container, e.g.:
```
docker run \
  --rm \
  -v "$PROJECT_DIR:/code" \
```
1. Have a directory in a container and its contents persist between runs, e.g.:
```
docker run \
  --rm \
  -v "myvolume:/root/.nuget/packages" \
```

Running arbitrary commands in a container

Define a Dockerfile with no entrypoint, e.g.:

FROM mcr.microsoft.com/dotnet/core/sdk:3.1.419
// any other relevant container setup

Build said container:

docker build -t "mydotnetcontainerenv:0.0.0" /path/to/dockerfile

Run any command in container, e.g.:

docker run \
  --rm \
  "mydotnetcontainerenv:0.0.0" \
  "dotnet build"
// the dotnet build _may_ not need to be quoted, not sure

What are <none>:<none> images?

What are Docker <none>:<none> images?

Remove dangling images

docker rmi $(docker images -f "dangling=true" -q)

Jesse's Notes

Explorer

Which dockerfile designation?

Authenticating against private nuget/npm feeds

Docker best practices

Creating images

When to (not) use tags

Shell syntax vs exec syntax

History with exec syntax

When to use exec syntax and shell syntax

Pro-tip: the `exec` shell built-in

Example using `exec`

Adding `CMD` to our Dockerfile

Overriding `CMD`

Using `ENTRYPOINT`

Adding `ENTRYPOINT` to our Dockerfile

Implications of JSON vs string syntax

When to use `ENTRYPOINT` vs `CMD`

Local dev inside a container

Exploring a crashed container

Obtaining a complete dump

Tips for building efficient Dockerfiles

Reducing the number of layers

Avoid re-installing dependencies at each build

Example “bad” `Dockerfile`

Fixed `Dockerfile`

Embedding unit tests in the build process

Volumes

Running arbitrary commands in a container

Graph View

Table of Contents

Jesse's Notes

Explorer

Docker

Which dockerfile designation?

Authenticating against private nuget/npm feeds

Docker best practices

Creating images

When to (not) use tags

Shell syntax vs exec syntax

History with exec syntax

When to use exec syntax and shell syntax

Pro-tip: the exec shell built-in

Example using exec

Adding CMD to our Dockerfile

Overriding CMD

Using ENTRYPOINT

Adding ENTRYPOINT to our Dockerfile

Implications of JSON vs string syntax

When to use ENTRYPOINT vs CMD

Local dev inside a container

Exploring a crashed container

Obtaining a complete dump

Tips for building efficient Dockerfiles

Reducing the number of layers

Avoid re-installing dependencies at each build

Example “bad” Dockerfile

Fixed Dockerfile

Embedding unit tests in the build process

Volumes

Running arbitrary commands in a container

Graph View

Table of Contents

Pro-tip: the `exec` shell built-in

Example using `exec`

Adding `CMD` to our Dockerfile

Overriding `CMD`

Using `ENTRYPOINT`

Adding `ENTRYPOINT` to our Dockerfile

When to use `ENTRYPOINT` vs `CMD`

Example “bad” `Dockerfile`

Fixed `Dockerfile`
